- General Information
- Manufacturer
- Acer, Inc
- Manufacturer Website Address
- http://www.acer.co.uk
- Brand Name
- Acer
- Product Type
- DLP Projector

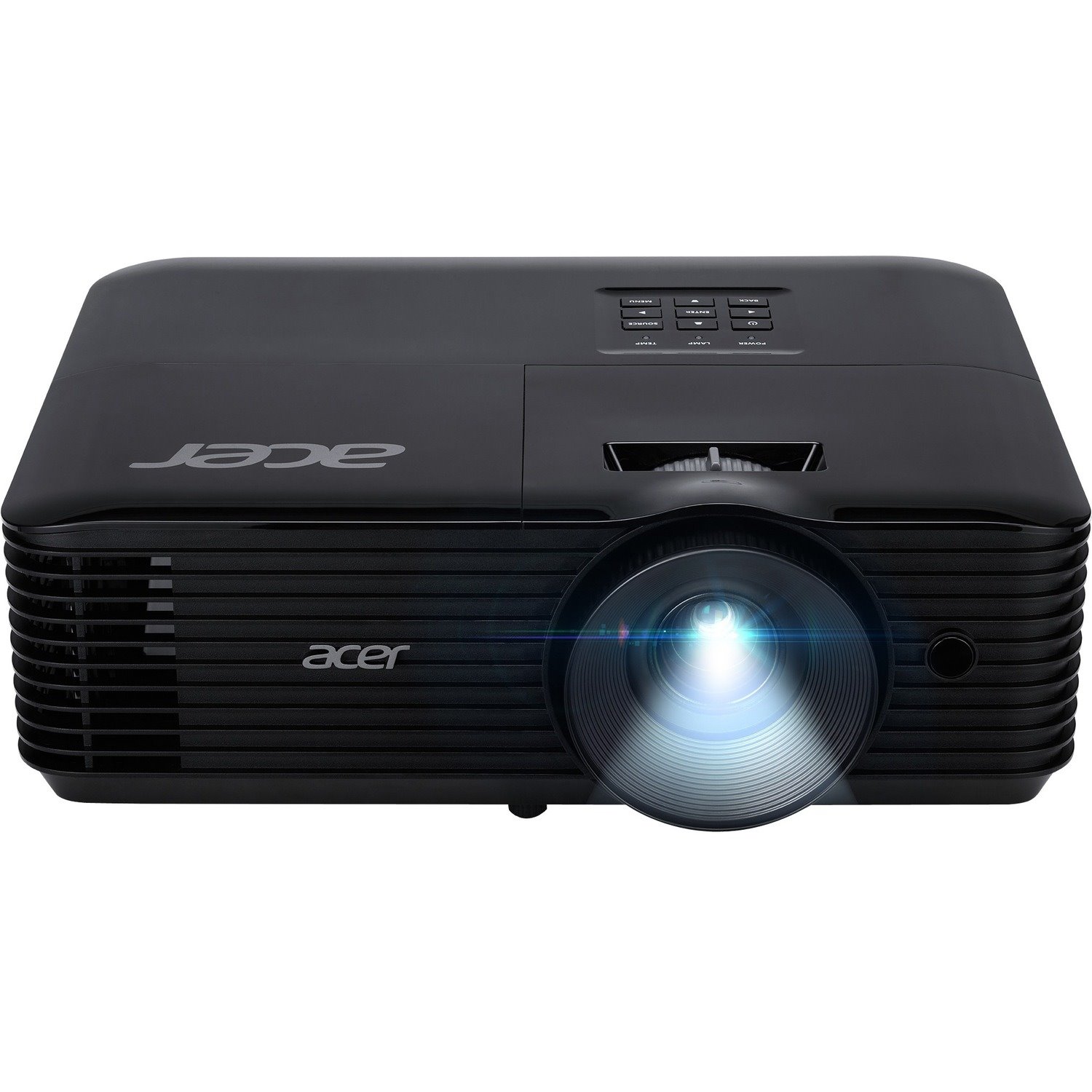

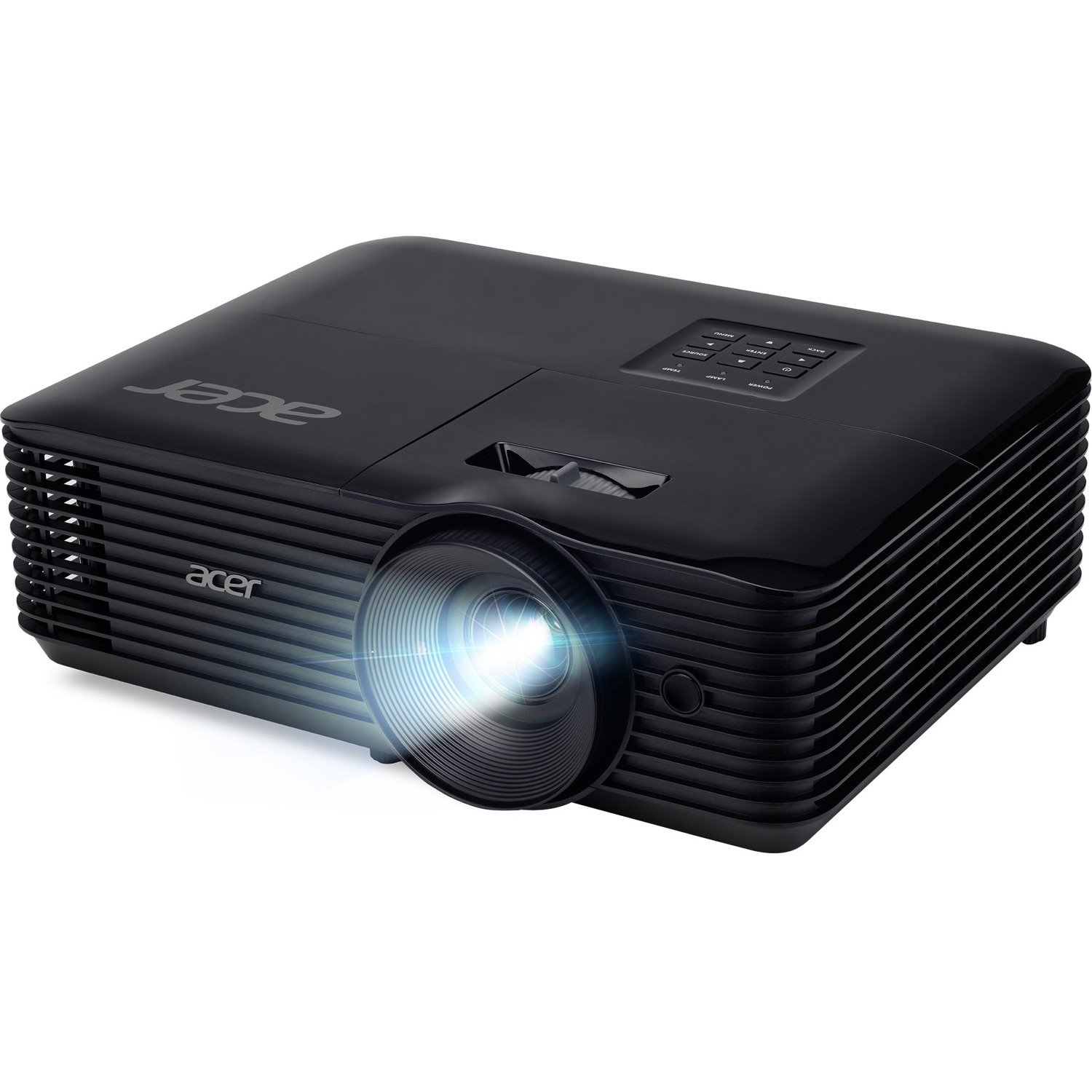

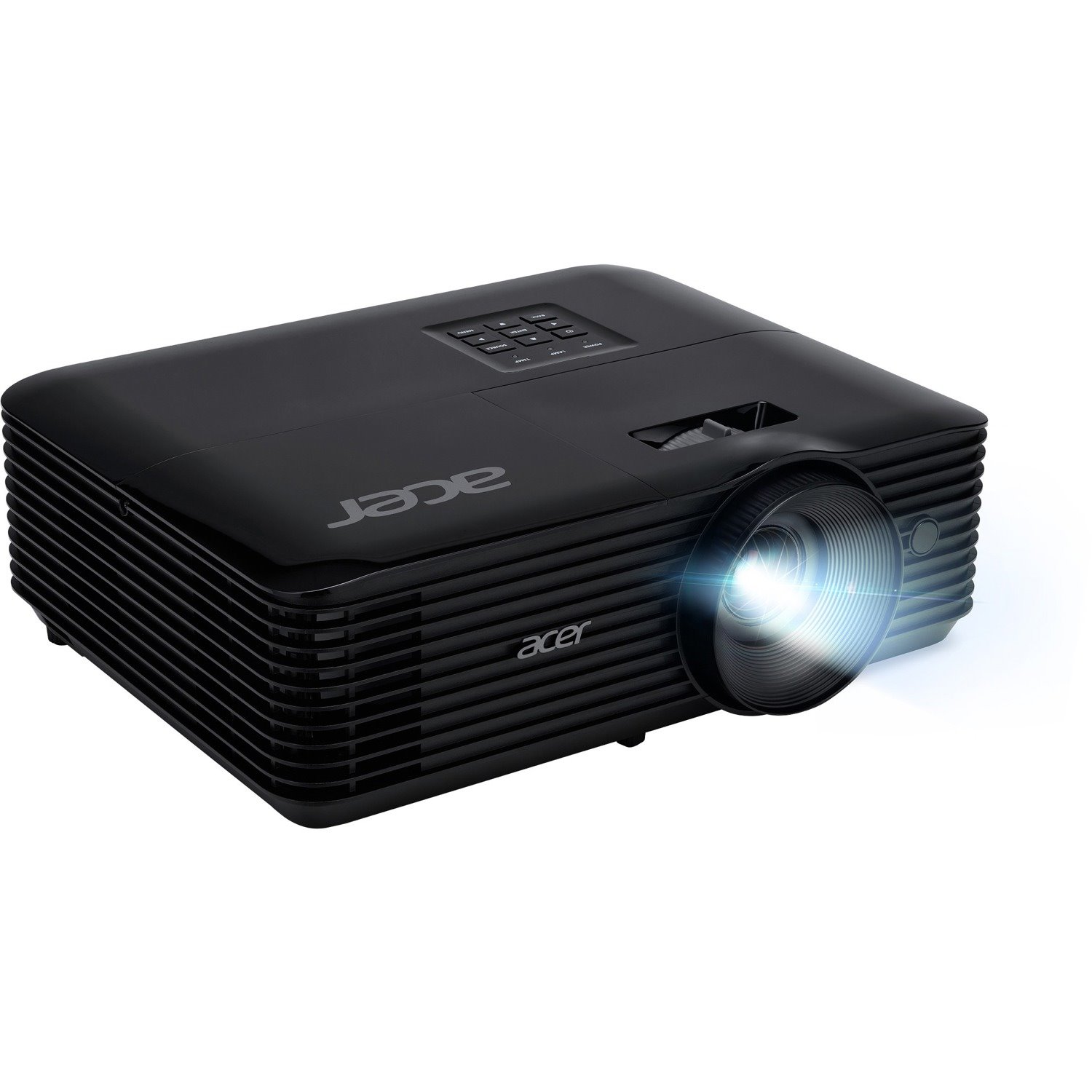

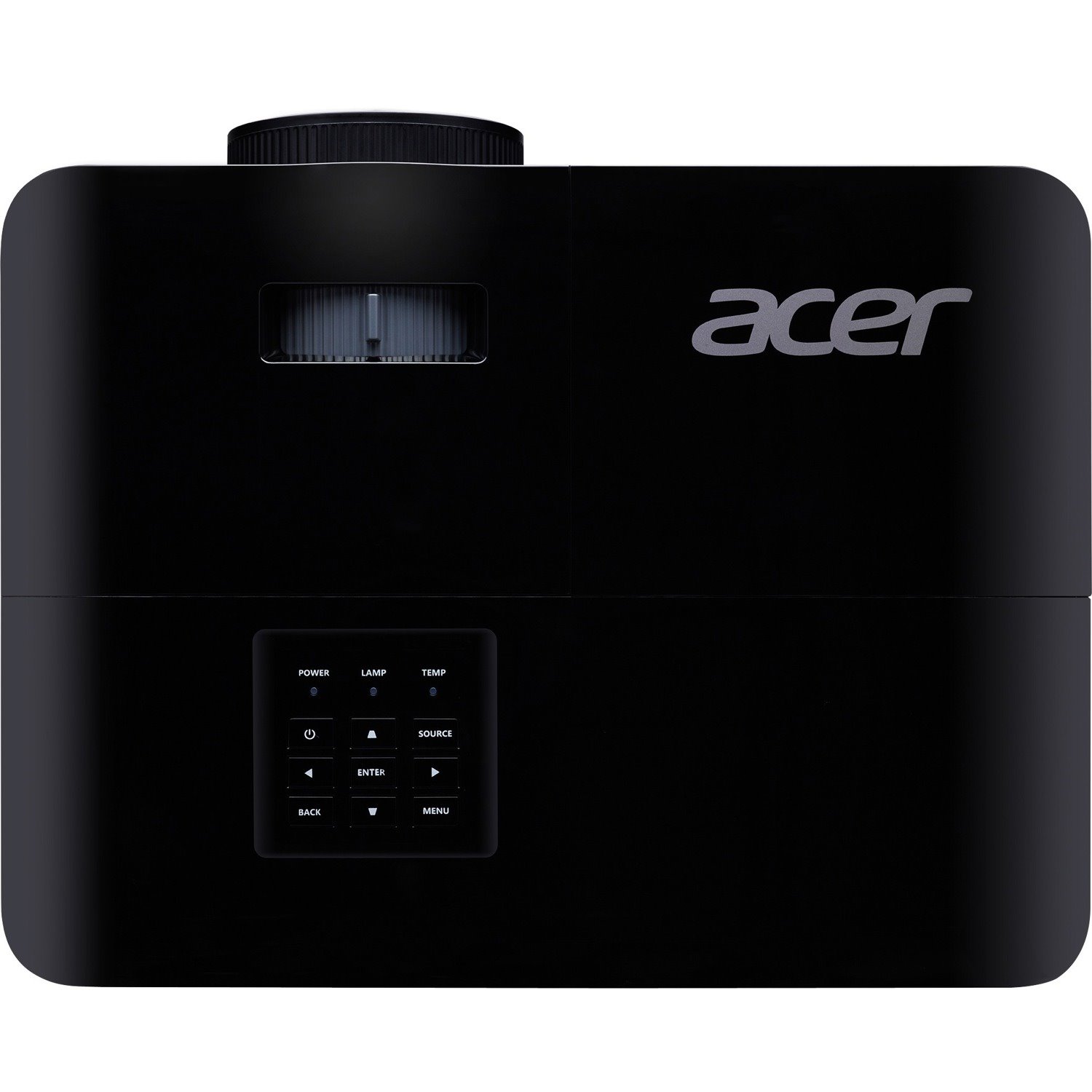

The Acer X1 Series projector boasts outstanding performance with rich colors, superb clarity, excellent 3D entertainment and a true 24p frame rate for a cinema-like experience. A long-lasting lamp life and practical lamp design keep maintenance costs low. And, Acer EcoProjection technology reduces power in standby mode from 5 W to 1 W, while Acer ColorSafe technology preserves the color integrity of your images even after prolonged use of the projector.
- Technical Information
- Projection Method
- Front
- Rear
- Ceiling
- Rear Ceiling
- Platform Supported
- PC
- Mac
- Projection System
- DLP
- Video Compatibility
- NTSC
- PAL
- SECAM
- HDTV
- EDTV
- SDTV
- Projection Offset (Half-Height)
- 124%
- Fan Noise (Economy Mode)
- 27 dB
- Display & Graphics
- Native Resolution
- 1280 x 800
- Maximum Resolution
- 1920 x 1200
- Native Aspect Ratio
- 16:10
- Graphic Mode
- WXGA
- Projection Lens
- Lens Type
- Manual Zoom
- Manual Focus
- Minimum Focal Length
- 21.85 mm
- Maximum Focal Length
- 24 mm
- Minimum Diagonal Image Size
- 685.80 mm
- Maximum Diagonal Image Size
- 7.62 m (300")
- Optical Zoom
- 1.1x
- Minimum Projection Distance
- 1 m
- Maximum Projection Distance
- 10 m
- Lamp
- Number of Lamps
- 1
- Lamp Power
- 220 W
- Image
- Standard Mode Brightness
- 5000 lm
- Standard Mode Brightness Disclaimer
- Compliant with ISO 21118 standard
- Colour Supported
- 1.07 Billion Colors (30-bit)
- Compatible Aspect Ratio
- 4:3
- 16:9
- Contrast Ratio
- 20,000:1
- Uniformity
- 80%
- Vertical Keystone Correction
- -40°/+40°
- Minimum Vertical Sync
- 24 Hz
- Maximum Vertical Sync
- 120 Hz
- Minimum Horizontal Sync
- 15 kHz
- Maximum Horizontal Sync
- 100 kHz
- Digital Zoom
- 2x
- Video
- Video Signal Format
- NTSC
- PAL
- SECAM
- Video Signal Standard
- HDTV
- Audio
- Number of Speakers
- 1
- Speaker Output Power
- 3 W
- Speaker Output Mode
- Mono
- Speaker Included
- Yes
- Network & Communication
- Wireless Capability
- EZCast
- Miracast Wi-Fi

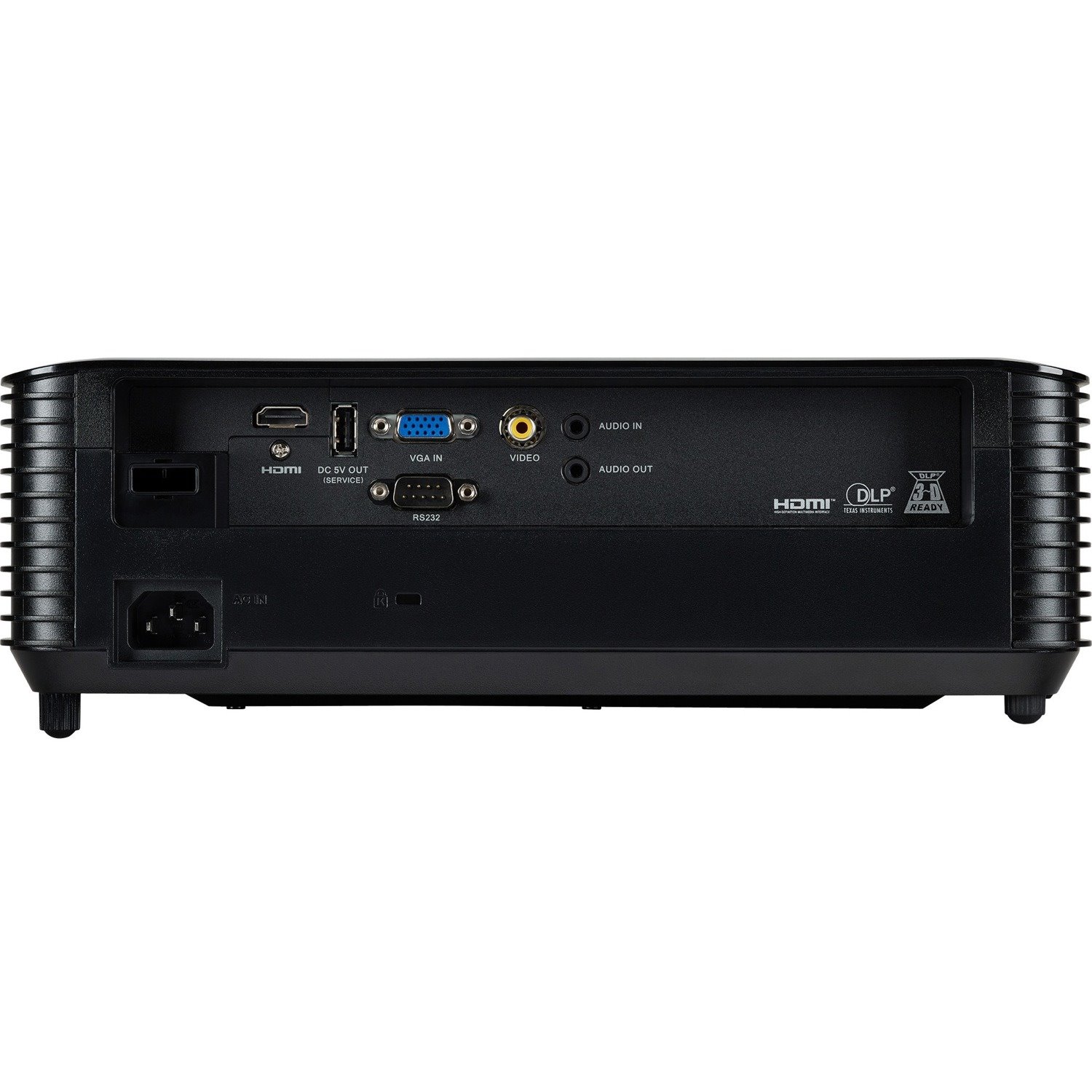

- Interfaces/Ports
- USB
- Yes
- Composite Video
- Yes
- Number of Composite Video Ports
- 1
- VGA In
- Yes
- Number of VGA Inputs
- 1
- Number Of Audio Inputs
- 1
- Audio Line In
- Yes
- Number Of Audio Outputs
- 1
- Audio Line Out
- Yes
- RS-232 (D-sub)
- 1
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Operating Power Consumption
- 265 W
- Standby Power Consumption
- 500 mW
- Physical Characteristics
- Form Factor
- Ceiling Mountable
- Height
- 113.7 mm
- Width
- 313 mm
- Depth
- 240 mm
- Weight (Approximate)
- 2.75 kg
- Installation
- Ceiling Mount
- Security
- Kensington Lock
- Security Bar
- Miscellaneous
- Package Contents
- X1328Wi DLP Projector
- AC Power Cord
- Battery for remote control
- Lens Cap
- Quick Start Guide
- Remote Control
- Security Card
- VGA Cable
- Carrying Case
- Country of Origin
- China
- Optional Accessories
- Carrying Case (MC.JPV11.005)
- Lamp (MC.JR711.008)
- Standard Accessories
- AC Power Cord
- Battery for remote control
- Lens Cap
- Quick Start Guide
- Remote Control
- Security Card
- VGA Cable
- Carrying Case
