- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus ROG
- Product Line
- Strix
- Product Type
- Gaming Desktop Motherboard

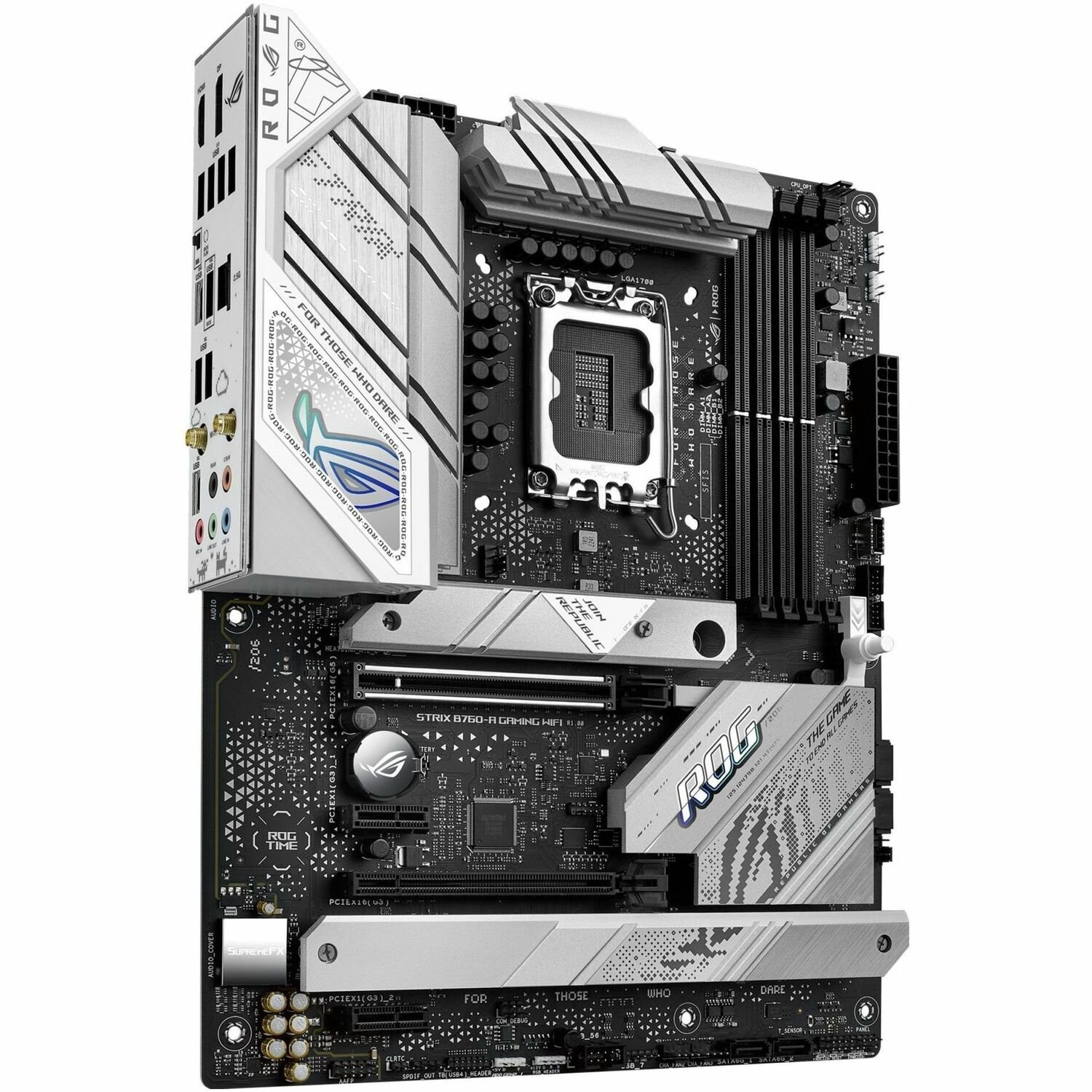

ROG STRIX B760-A GAMING WIFI
Just like itsformidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps. This platform delivers the power and connectivity that advanced AI PC applications demand.
DIY-FRIENDLY FEATURES | PCIE® SLOT Q-RELEASE
?A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- B760
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 14th Gen
- 13th Gen
- 12th Gen
- Processor Supported
- Core
- Celeron
- Pentium Gold
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 192 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 7800 MHz
- 7600 MHz
- 7400 MHz
- 7200 MHz
- 7000 MHz
- 6800 MHz
- 6600 MHz
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 4800 MHz
- 5000 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.3
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax
- I/O Expansions
- Total Number of Expansion Slots
- 4
- PCI Express Standard
- PCI Express 5.0
- Total Number of PCI Express Slots
- 4
- Number of PCI Express x1 Slots
- 2
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 9
- Number of USB 3.2 Gen 1 Type-A Ports
- 2
- Number of USB 3.2 Gen 2 Type-A Ports
- 1
- VGA
- Yes
- HDMI
- Yes
- HDMI Version
- 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Thunderbolt
- Yes
- Number of Thunderbolt 4 Ports
- 2
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 3
- Total Number of Onboard USB Ports
- 6
- Number of Onboard USB 2.0 Ports
- 3
- Onboard S/PDIF Header
- Yes
- Physical Characteristics
- Form Factor
- ATX
- Width
- 304.8 mm
- Depth
- 243.8 mm
- Miscellaneous
- Package Contents
- STRIX B760-A GAMING WIFI GAMING Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x Thermal pad for M.2
- 1 x ASUS Wi-Fi moving antennas
- 1 x Cable ties package
- 1 x M.2 Q-Latch package
- 1 x ROG Strix stickers
- 1 x ROG Strix thank you card
- 1 x M.2 Rubber Packages
- 1 x User guide
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
