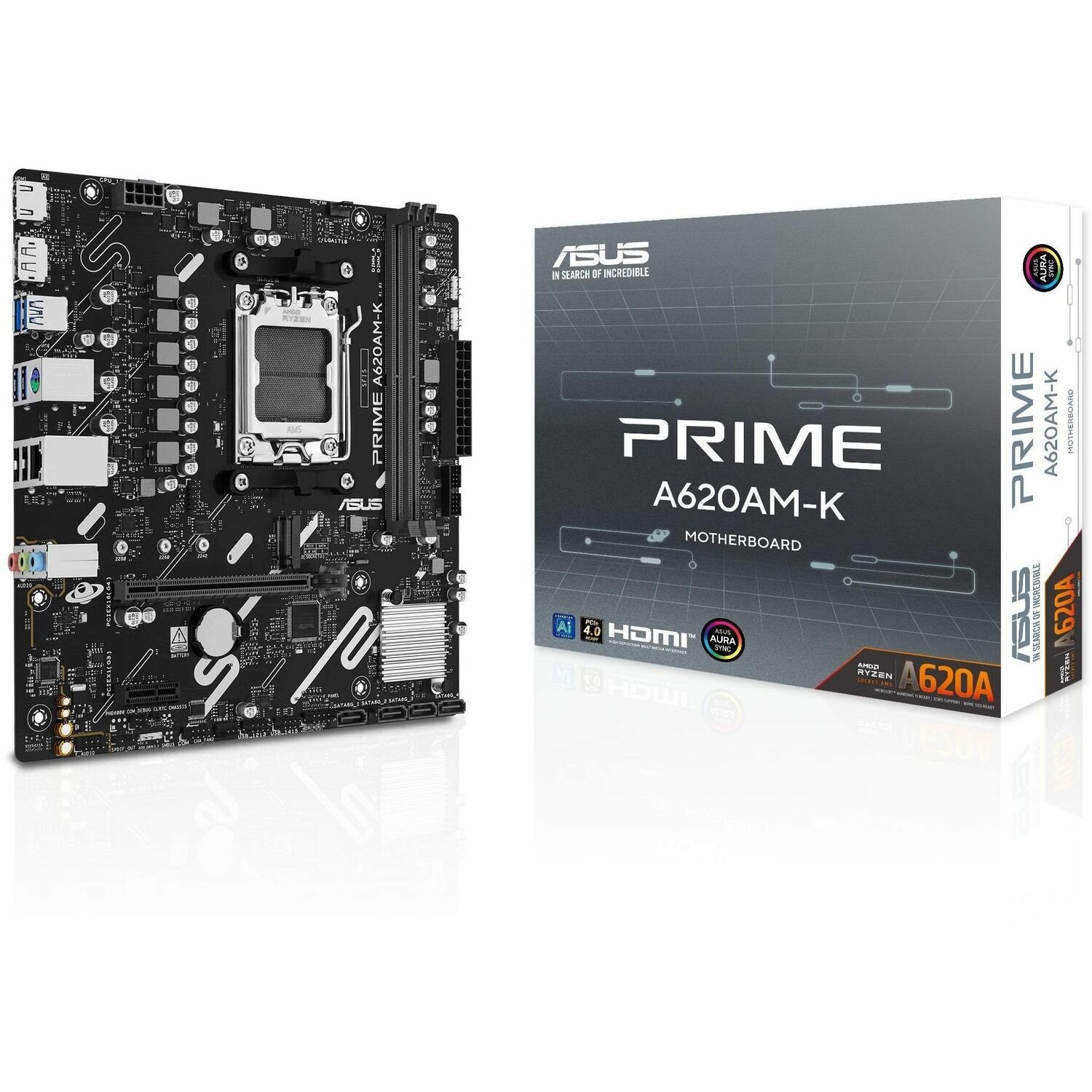

PRIME A620AM-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME A620AM-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Digital Power Design
PRIME A620AM-K features 6+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME A620AM-K maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.1
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the PRIME A620AM-K offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.
PCIe 4.0 M.2 Support
PRIME A620AM-K offers one M.2 slot that supports data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
Cooler by design
The PRIME A620AM-K motherboard is engineered with onboard chipset heatsink and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Empowering connections
This motherboard offers a versatile range of connectivity, including support for PCIe 4.0 slot, 1Gb Ethernet and an arsenal of USB ports connection.
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus
- Product Line
- Prime
- Product Type
- Gaming Desktop Motherboard
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- AMD
- Chipset Model
- A620A
- Total Processor Supported
- 1
- Processor Socket
- Socket AM5
- Processor Supported
- Ryzen 5
- Ryzen 7
- Ryzen 9
- Memory
- Number of Memory Slots
- 2
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 7200 MHz
- 7600 MHz
- Error Checking
- ECC
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 3
- PCI Express Standard
- PCI Express 3.0
- PCI Express 4.0
- Total Number of PCI Express Slots
- 3
- Number of PCI Express x1 Slots
- 1
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 6
- HDMI
- Yes
- HDMI Version
- HDMI 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 1
- Total Number of Onboard USB Ports
- 6
- Number of Onboard USB 2.0 Ports
- 4
- Onboard S/PDIF Header
- Yes
- Physical Characteristics
- Form Factor
- Micro ATX
- Width
- 226 mm
- Depth
- 221 mm
- Miscellaneous
- Brand Compatibility
- AMD
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
