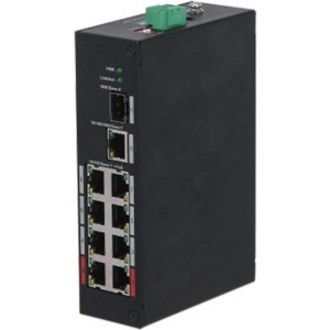

DH-PFS3110-8ET-96 is a layer two Hardened PoE Switch, which provides 8*10/100Mbps PoE ports, 1*100/1000 Mbps optical port and 1*10/100/1000Mbps Ethernet uplink port. With high level lightning protection and wide working temperature range makes it a better performance in outdoor or harsh environment.
- General Information
- Manufacturer
- Zhejiang Dahua Technology Co., Ltd.
- Manufacturer Website Address
- http://www.dahuasecurity.com
- Brand Name
- Dahua
- Product Type
- Ethernet Switch
- Interfaces/Ports
- Total Number of Network Ports
- 9
- Uplink Port
- Yes
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 1 x Gigabit Ethernet Expansion Slot
- 1 x Gigabit Ethernet Network
- 8 x Fast Ethernet PoE
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Fast Ethernet
- Gigabit Ethernet
- Network Technology
- 10/100Base-T
- 10/100/1000Base-T
- 1000Base-X
- I/O Expansions
- Total Number of Expansion Slots
- 1.0
- Expansion Slot Type
- SFP (mini-GBIC)
- Number of SFP Slots
- 1
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- Management & Protocols
- Manageable
- No
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 96 W
- Power Source
- Power Adapter
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Height
- 42 mm
- Width
- 150 mm
- Depth
- 100 mm
- Weight (Approximate)
- 540 g
