- General Information
- Manufacturer
- Dell Technologies
- Manufacturer Website Address
- http://www.dell.co.uk
- Brand Name
- Dell
- Product Line
- SmartDock
- Product Series
- Pro
- Marketing Information
Engineered for success
Maximise your AI PC productivity by seamlessly using Gen AI tools across up to four 4K 60Hz displays, staying powered with up to 130W power delivery, and connecting all your peripherals effortlessly.
Most manageable and secure
Elevate the IT management experience by directly managing your smart docks from the Dell Device Management Console - no PC connection or software required.
Most manageable commercial dock
Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.
Effortless maintenance
Remotely configure, deploy and update smart Docks over Wi-Fi via industry's first holistic peripheral management solution.
Unlock out-of-band management on select Intel vPro® PCs with Intel® Active Management Technology (Intel® AMT) over Thunderbolt via the connected dock.
Work Smarter
Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Thunderbolt 4 Smart Dock.
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.
Designed for sustainability
The Dell Pro Thunderbolt 4 Smart Dock is built with at least 65% post-consumer recycled materials and packaged with 100% recycled or renewable packaging.
- Product Type
- Docking Station
- Technical Information
- Connectivity Technology
- Wired
- Device Supported
- Notebook
- Features
- Security Lock
- Power Delivery Pass-through
- Management Features
- Intel AMT over Thunderbolt with select Intel vPro PCs
- MAC Address Pass-through
- PXE Boot
- Dock Power Button Sync
- Wake-on-LAN
- WLAN to LAN Switch
- Kernel Direct Memory Access (DMA) Protection
- Dell Command Update (DCU)
- Port Disablement
- Number of Displays Supported
- 4
- Screen Mode Supported
- QHD @ 60Hz
- WQHD @ 60Hz
- 4K @ 60Hz
- 5K @ 60Hz
- 6K @ 60Hz
- 8K @ 60Hz
- Supported Resolutions
- 2560 x 1440
- 3440 x 1440
- 3840 x 2160
- 5120 x 2160
- 6144 x 3456
- 7680 x 4320
- Maximum Data Transfer Rate
- 1.25 GB/s
- Security Slot Type
- Kensington Security Slot
- Noble Wedge Security Slot
- Power Delivery Details
- 4 x USB-A 3.2 Gen 2 (4.5W each)
- 1 x USB-C 3.2 Gen 2 (15 W)
- 1 x USB-C Multifunction DisplayPort (7.5W)
- 2 x Thunderbolt 4 (15 W each)
- All of them supply electricity, with or without a PC.
- Power Delivery
- 130W (Dell Systems)
- 96W (non-Dell Systems)
- Video Resolution Details
- QHD - 60 Hz (Quad Display)
- WQHD - 60 Hz (Triple Display)
- 4K - 60 Hz (Dual Display)
- 5K - 60 Hz (Single Display)
- 4K - 60 Hz (Quad Display)
- 4K - 60 Hz (Triple Display)
- 6K - 60 Hz (Dual Display)
- 8K - 60 Hz (Single Display)
- Network & Communication
- Ethernet Technology
- 2.5 Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- Thunderbolt 4
- Total Number of USB Ports
- 6
- USB Type-A
- Yes
- Number of USB 3.2 Gen 2 Type-A Ports
- 4
- Number of USB Type-A Ports
- 4
- USB Type-C
- Yes
- USB Type-C Detail
- 1 x USB-C 3.2 Gen 2 Multifunction DisplayPort 1.4, 1 x USB-C 3.2 Gen 2 (10Gbps)
- Number of USB Type-C Ports
- 2
- Network (RJ-45)
- Yes
- DisplayPort
- Yes
- Number of DisplayPorts
- 2
- DisplayPort Version
- 1.4
- HDMI
- Yes
- Number of HDMI Ports
- 1
- HDMI Version
- 2.1
- Thunderbolt
- Yes
- Number of Thunderbolt 4 Ports
- 2
- USB Power Delivery
- 96W
- Total Number of Ports
- 12
- Software
- Operating System Supported
- Windows 10
- Windows 11
- Ubuntu
- Red Hat Enterprise Linux
- ChromeOS
- macOS
- Power Description
- Maximum Power Supply Wattage
- 180 W
- Power Source Type
- Power Adapter
- Physical Characteristics
- Height
- 205 mm
- Width
- 90 mm
- Depth
- 35.3 mm
- Weight (Approximate)
- 579 g
- Miscellaneous
- Package Contents

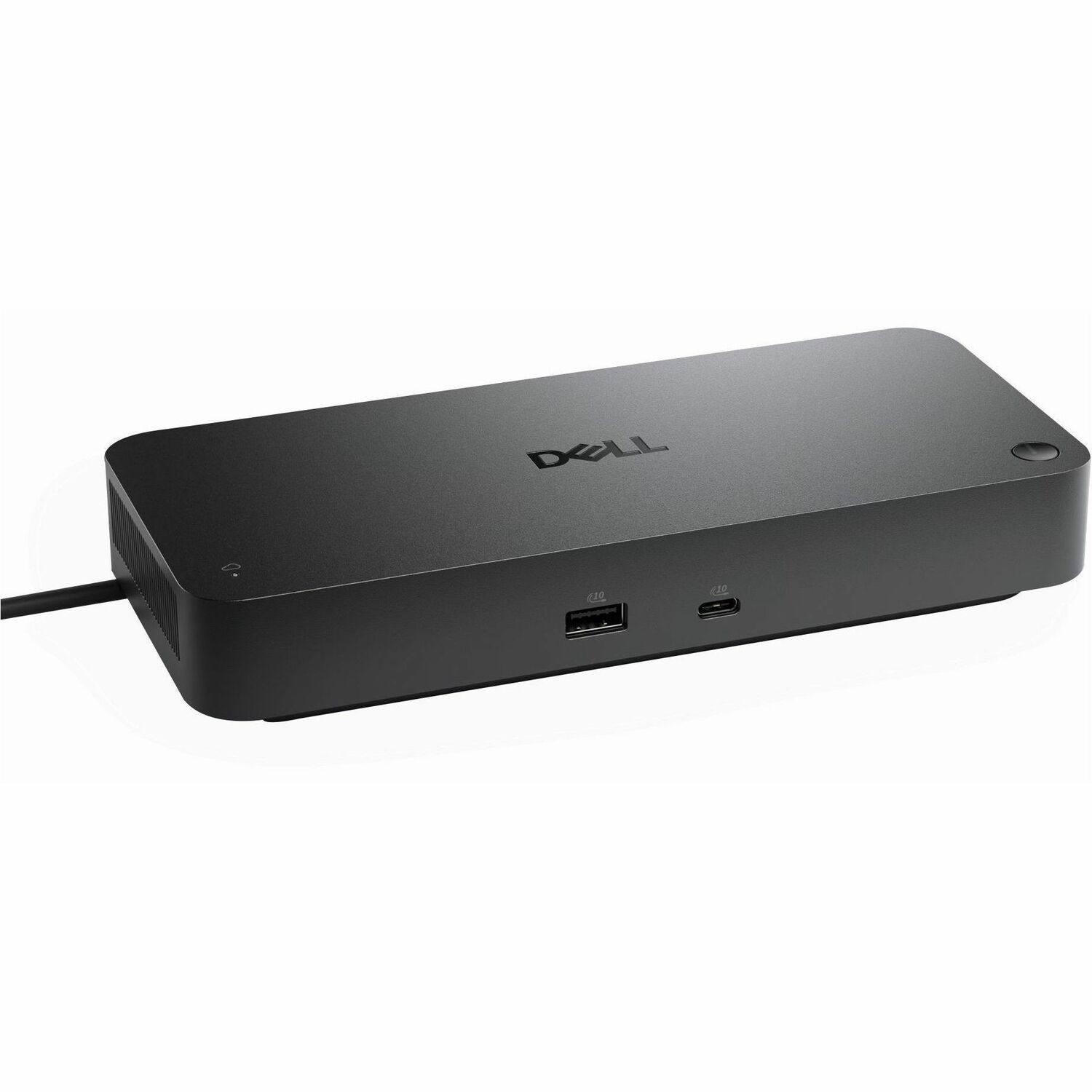

- SmartDock Pro SD25TB4 Docking Station
- Power Adapter and Power Cable
- Documentation (Quick Guide, Safety, Environmental and Regulatory Information)
- Kensington Security Slot
- Yes
