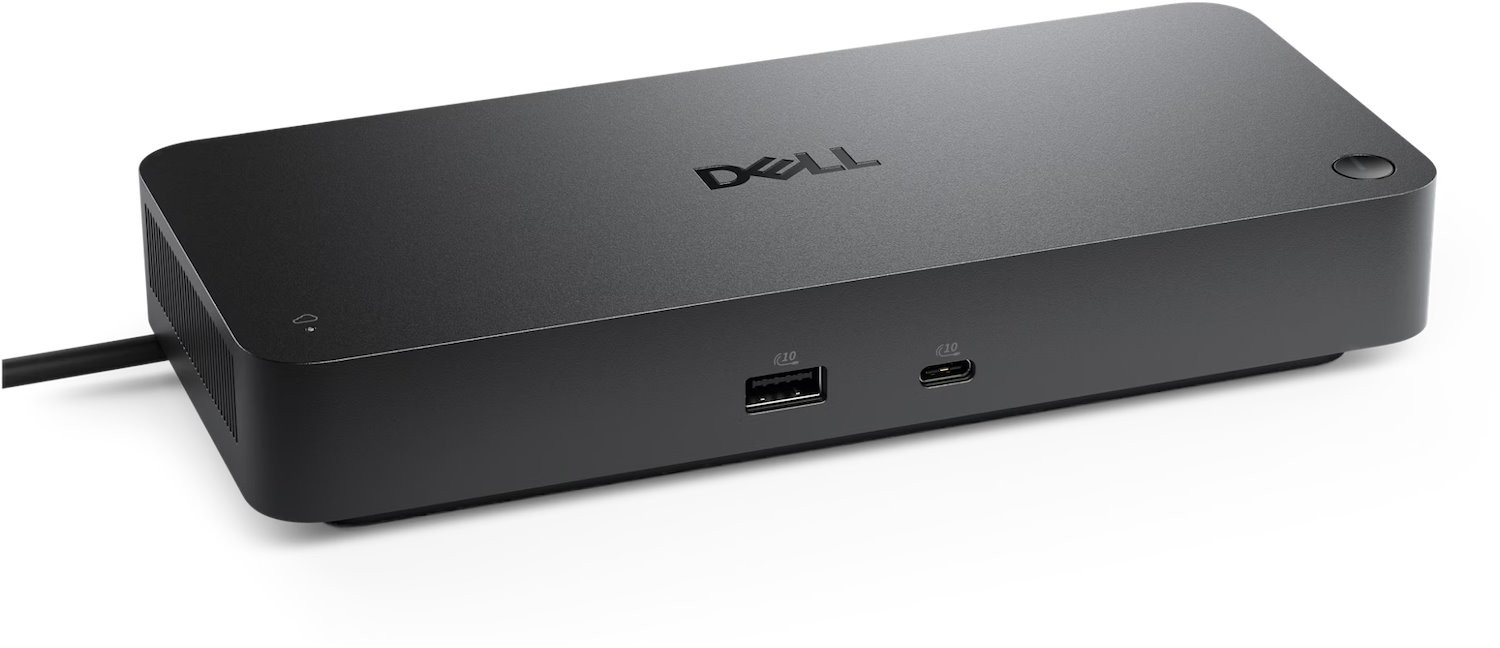

Dell PRO SD25TB5 12 Port(s) Thunderbolt 5 Docking Station for Notebook - 330 W

  • Part: 1021467
  • Model: 210-BRFN
R7,391.00
FREE DELIVERY

Availability

In Stock

  • General Information
    • Manufacturer
    • Dell Technologies
    • Manufacturer Website Address
    • http://www.dell.co.uk
    • Brand Name
    • Dell
    • Product Line
    • PRO
    • Marketing Information
    • Future-proof your productivity

      Maximise your AI PC productivity on the industry's first, and most powerful, Thunderbolt 5 smart dock, built for seamless multitasking using Gen AI tools across up to four 4K 120Hz displays. Featuring extended power range, this smart dock delivers up to 300W of power over a single USB-C cable to meet the demands of the highest performance AI PCs. Modern ports ensure a wide range of peripheral connectivity.

      More manageable and secure

      Elevate the IT management experience by directly managing your smart docks from the Dell Device Management Console - no PC connection or software required.

      Most manageable commercial dock

      Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.

      Most secure smart dock

      Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock.

      Effortless maintenance

      Remotely configure, deploy and update Dell Pro Smart Docks over Wi-Fi without the user connecting to a PC.

      Unlock out-of-band management on select Intel vPro® PCs with Intel® Active Management Technology (Intel® AMT) over Thunderbolt from the connected dock.

      Connect your way

      Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.

      Designed for sustainability

      The Dell Pro Thunderbolt 5 Smart Dock is built with at least 65% post-consumer recycled materials and packaged with 100% recycled or renewable packaging.


    • Product Type
    • Docking Station

  • Technical Information
    • Connectivity Technology
    • Wired
    • Device Supported
    • Notebook
    • Cable Length
    • 83 cm
    • Features
    • Power Delivery Pass-through
    • LED Power Indicator
    • Management Features
    • MAC Address Pass-through
    • PXE Boot
    • Dock Power Button Sync
    • Wake-on-LAN
    • Kernel Direct Memory Access (DMA) Protection
    • Intel AMT over Thunderbolt with select Intel vPro PCs
    • Dell Command Update (DCU)
    • Port Disablement
    • WLAN to LAN Switch
    • Number of Displays Supported
    • 4
    • Screen Mode Supported
    • QHD @ 60Hz
    • WQHD @ 60Hz
    • 4K @ 60Hz
    • 5K @ 60Hz
    • 6K @ 60Hz
    • 8K @ 60Hz
    • 4K @ 120Hz
    • Supported Resolutions
    • 2560 x 1440
    • 3440 x 1440
    • 3840 x 2160
    • 5120 x 2160
    • 6144 x 3456
    • 7680 x 4320
    • Maximum Data Transfer Rate
    • 1.25 GB/s
    • Security Slot Type
    • Kensington Security Slot
    • Noble Wedge Security Slot
    • Power Delivery Details
      • 4 x USB-A 3.2 Gen 2 (4.5W each)
      • 1 x USB-C 3.2 Gen 2 (15W)
      • 1 x USB-C Multi-function DisplayPort (7.5W)
      • 2 x Thunderbolt 5 (15W each)
      • All deliver power with or without PC
    • Power Delivery
    • 240W (non-Dell Systems)
    • 300W (Dell Systems)
    • Video Resolution Details
    • QHD - 60 Hz (Quad Display)
    • WQHD - 60 Hz (Triple Display)
    • 4K - 60 Hz (Dual Display)
    • 5K - 60 Hz (Single Display)
    • 4K - 60 Hz (Quad Display)
    • 4K - 60 Hz (Triple Display)
    • 6K - 60 Hz (Dual Display)
    • 8K - 60 Hz (Single Display)
    • 4K - 120 Hz (Quad Display)
    • 4K - 120 Hz (Triple Display)
  • Network & Communication
    • Ethernet Technology
    • 2.5 Gigabit Ethernet
  • Interfaces/Ports
    • Host Interface
    • Thunderbolt 5
    • Total Number of USB Ports
    • 6
    • USB Type-A
    • Yes
    • Number of USB 3.2 Gen 2 Type-A Ports
    • 4
    • Number of USB Type-A Ports
    • 4
    • USB Type-C
    • Yes
    • USB Type-C Detail
    • 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 1 x USB-C 3.2 Gen 2 (10 Gbps)
    • Number of USB Type-C Ports
    • 2
    • Network (RJ-45)
    • Yes
    • DisplayPort
    • Yes
    • Number of DisplayPorts
    • 2
    • DisplayPort Version
    • 2.1
    • HDMI
    • Yes
    • Number of HDMI Ports
    • 1
    • HDMI Version
    • 2.1
    • Thunderbolt
    • Yes
    • Thunderbolt 5
    • Yes
    • Thunderbolt Ports Quantity
    • 2
    • Total Number of Ports
    • 12
  • Software
    • Operating System Supported
    • Windows 10
    • Windows 11
    • Ubuntu 24.04
    • macOS
    • Red Hat Enterprise Linux 9.7
    • ChromeOS 141
  • Power Description
    • Maximum Power Supply Wattage
    • 330 W
    • Power Source Type
    • Power Adapter
  • Physical Characteristics
    • Height
    • 205 mm
    • Width
    • 90 mm
    • Depth
    • 35.3 mm
    • Weight (Approximate)
    • 632 g
  • Miscellaneous
    • Package Contents
      • PRO SD25TB5 Docking Station
      • Power Supply
      • Power Cable
      • Documentation (Quick Guide, Safety, Environmental and Regulatory Information)
    • Kensington Security Slot
    • Yes
