- General Information
- Manufacturer
- Edimax Technology
- Manufacturer Website Address
- http://www.edimax.com
- Brand Name
- Edimax
- Packaged Quantity
- 1
- Product Type
- Ethernet Switch

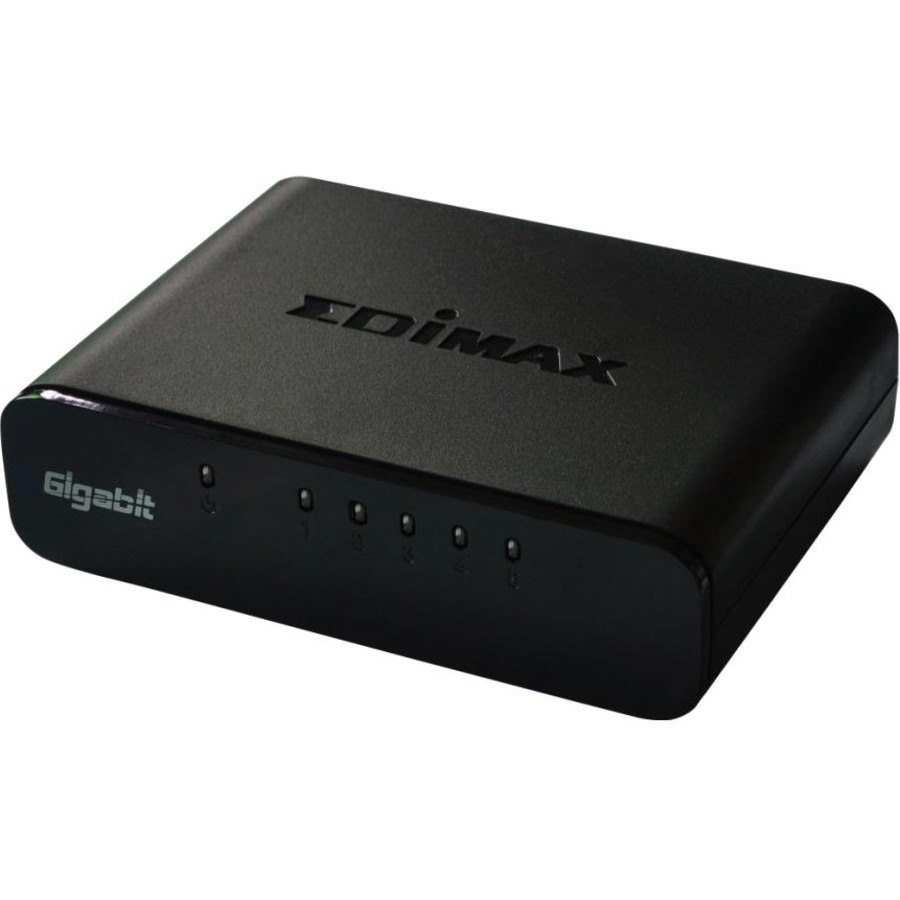

The ES-5500G V3 is a 10/100/1000 Mbps Gigabit Desktop unmanaged switch designed to enhance network performance in a compact form factor, and with outstanding performance and high efficiency. The switch uses store and forward packet-switching technology which offers reliable data transfer. This switch is ideal for network connectivity for the SOHO environment.
The ES-5500G V3 with plastic housing offers a cost-effective Gigabit Ethernet solution for users to easily extend home networks and to fulfill their online gaming, multimedia transferring and streaming needs. The plug-and-play design allows users to easily connect network devices such as PCs, network storages and print servers to the home network without manual configuration involved.
- Interfaces/Ports
- Total Number of Network Ports
- 5
- Token Ring Port
- No
- LRE Port
- No
- Uplink Port
- No
- Bypass
- No
- Modular
- No
- Management Port
- No
- USB
- No
- Stack Port
- No
- Number of Network (RJ-45) Ports
- 5
- Port/Expansion Slot Details
- 5 x Gigabit Ethernet Network
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 5e
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Network & Communication
- Layer Supported
- 2
- Management & Protocols
- Manageable
- No
- Power Description
- PoE (RJ-45) Port
- No
- Power Source
- Power Adapter
- Redundant Power Supply Supported
- No
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 25.5 mm
- Width
- 98 mm
- Depth
- 71 mm
- Weight (Approximate)
- 112 g
- Miscellaneous
- Package Contents
- 5-Port Gigabit Desktop Switch
- 1 x User Manual
- 1 x Power Adapter
- 1 x USB Power Cable
- Certifications & Standards
- FCC Class B
- CE
- EN 55022:2006+A1:2007 Class B
- EN 55024:1998+A1:2001+A2:2003
- En 61000-3-2:2006+A1:2009+A2:2009 Class A
- EN 61000-3-3:2008
- 802.3
- 802.3u
- 802.3ab
- 802.3x
- 802.3az
- Environmentally Friendly
- Yes
