- General Information
- Manufacturer
- Epson Corporation
- Manufacturer Website Address
- http://www.epson.co.uk
- Brand Name
- Epson
- Product Series
- TM-U220
- Product Type
- Dot Matrix Printer

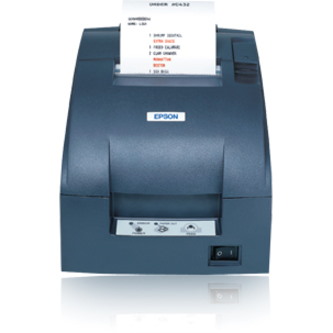

Epson's TM-U220 impact printers are compact, reliable and optimized for high-speed throughput. They offer all the easy-to-use features important to the retail, restaurant and hospitality industries and two-color printing to highlight special offers, kitchen orders and impactful logos. In addition, the TM-U220 printers have been designed to be 100% compatible with existing systems that currently use a TM-U200 printer.
- Technical Information
- Recommended Use
- Receipt Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 4.7 lps
- Maximum Print Resolution (dpi)
- 180
- Number of Pins
- 9-pin
- Maximum Print Width
- 63.40 mm (2.50")
- Features
- Auto-cutter
- Connectivity Technology
- Wired
- Print Technology
- Impact Dot Matrix
- Memory
- Standard Memory
- 4 KB
- Flash Memory
- 8 KB
- Interfaces/Ports
- USB
- Yes
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Cutter
- Cutter
- Yes
- Media Types & Handling
- Media Type
- Roll Paper
- Media Size
- 76 mm
- Maximum Roll Diameter
- 83 mm
- Maximum Label Width
- 76 mm
- Power Description
- Power Source
- Power Adapter
- Input Voltage
- 24 V DC
- Physical Characteristics
- Form Factor
- Wall Mount
- Color Family
- Black
- Product Color
- Black
- Height
- 138.5 mm
- Width
- 160 mm
- Depth
- 248 mm
- Weight (Approximate)
- 2.50 kg
- Miscellaneous
- Power Adapter Included
- Yes
- Additional Information
Horizontal Media Size: 76mm
- Platform Supported
- PC
- Certifications & Standards
EMI Standard:
- CE EN55022 class B
Safety Standards
- CE EN55024
- EN60950
