- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Line
- TandemVu
- Product Series
- Pro
- Product Type
- Network Camera

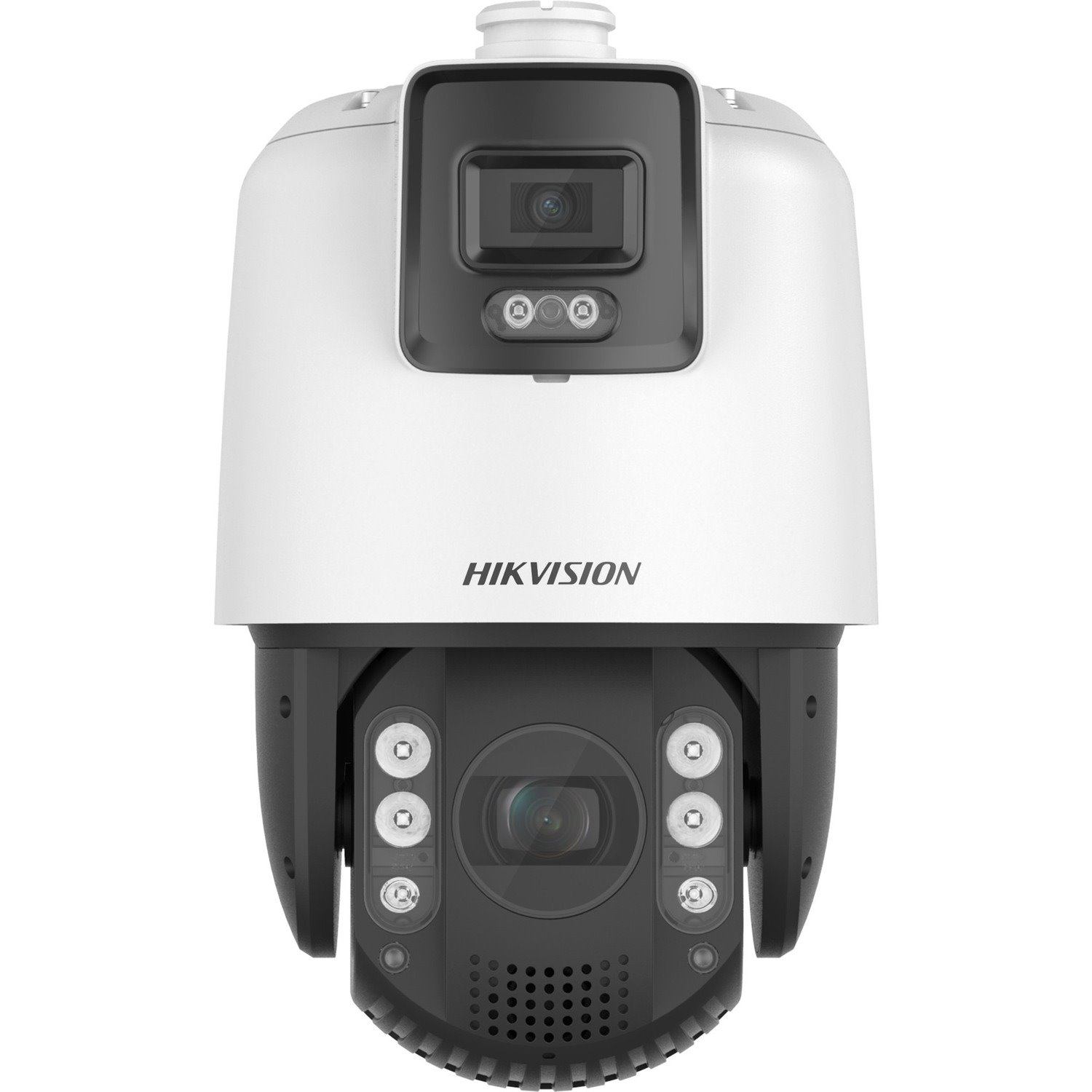

Hikvision DS-2SE7C432MW-AEB(14F1)(P3) 4 MP 32 × IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 32 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
- Technical Information
- Recording Formats
- Full HD
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 200 m
- Night Vision Type
- Infrared/Color
- Display & Graphics
- Image Sensor Type
- CMOS
- Colour Supported
- Colour
- Field of View
- [PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele)
- Effective Camera Resolution
- 4 Megapixel
- Video
- Video Formats
- H.264
- H.265
- MJPEG
- H.264+
- H.265+
- H.264 BP
- H.264 (MP)
- H.264 HP
- H.265 (MP)
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 5.90 mm
- Maximum Focal Length
- 188.80 mm
- Lens Included
- Yes
- Maximum Aperture
- f/1.5
- Optical Zoom
- 32x
- Exposure
- Shortest Shutter Speed
- 1/30000 Second
- Longest Shutter Speed
- 1 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 24 V AC
- Physical Characteristics
- Mount Type
- Wall Mount
- Corner Mount
- Pole Mount
- Pendant Mount
- Vertical Mount
- Form Factor
- Dome
- Color Family
- White
- Product Color
- White
- Diameter
- 220 mm
- Weight (Approximate)
- 6 kg
- Environmental Conditions
- Minimum Operating Temperature
- -30°C
- Maximum Operating Temperature
- 65°C
- Maximum Operating Humidity
- 90%
- Miscellaneous
- Features
- Surge Protection
- Day/Night
- SD Card Local Storage
- Highlight Compensation (HLC)
- Back Light Compensation (BLC)
- Wide Dynamic Range
- Defog
- Electronic Image Stabilization
- Automatic White Balance
- Privacy Masking
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
