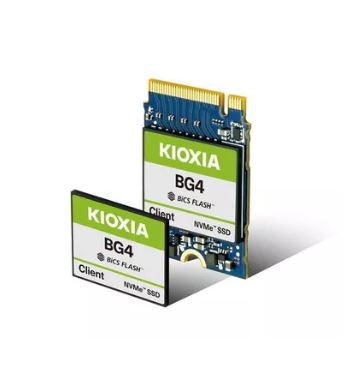

In a compact, single-package form factor and based on 96-layer BiCS FLASH™ 3D flash memory, the BG4 Series is designed for thin and light performance-oriented use cases, such as ultra-mobile PCs, IoT devices and data center server boot. Available in capacities up to 1 TB, this series features Host Memory Buffer (HMB), PCIe® Gen3 x4 interface and supports the NVMe™ command set. The BG4 Series offers a Self-encrypting Drive (SED) option that supports TCG Opal version 2.01, under a different model number
- General Information
- Manufacturer
- Toshiba
- Manufacturer Website Address
- http://www.toshiba.co.uk
- Brand Name
- KIOXIA
- Product Series
- BG4
- Product Type
- Solid State Drive
- Technical Information
- Storage Capacity
- 512 GB
- Drive Performance
- Maximum Read Transfer Rate
- 2200 MB/s
- Maximum Write Transfer Rate
- 1400 MB/s
- Network & Communication
- Wireless LAN
- No
- Interfaces/Ports
- Drive Interface
- PCI Express NVMe
- Drive Interface Standard
- PCI Express NVMe 3.0 x4
- Power Description
- Operating Power Consumption
- 3.50 W
- Physical Characteristics
- Drive Type
- Internal
- Form Factor
- M.2 2230
- Height
- 2.2 mm
- Width
- 22.2 mm
- Depth
- 30.2 mm
- Weight (Approximate)
- 2.5 g
- Miscellaneous
- Device Supported
- Notebook
- Storage System
- Server
