- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com
- Brand Name
- TP-Link
- Product Line
- Omada
- Product Type
- Wireless Access Point
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter is not included) for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
- Traditional SU-MIMO (Single-User MIMO) AP sends data to one device at a time that causes more latency
- MU-MIMO (Multi-User MIMO) EAP simultaneously sends data to multiple devices for faster speed
Omada SDN-Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites-all controlled from a single interface anywhere, anytime.
Secure Guest Network with Facebook Wi-Fi and SMS Authentication
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP223 supports both 802.3af/at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the PoE adapter, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
- Technical Information
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac
- Network Band
- Dual Band
- Frequency Band
- 2.40 GHz
- 5 GHz
- Total Number of Antennas
- 3
- Number of Internal Antennas
- 3
- Indoor/Outdoor
- Indoor/Outdoor
- Wireless Transmission Speed
- 1.29 Gbit/s
- MIMO Technology
- Yes
- Beamforming Technology
- Yes
- Interfaces/Ports
- Ethernet Technology
- Gigabit Ethernet

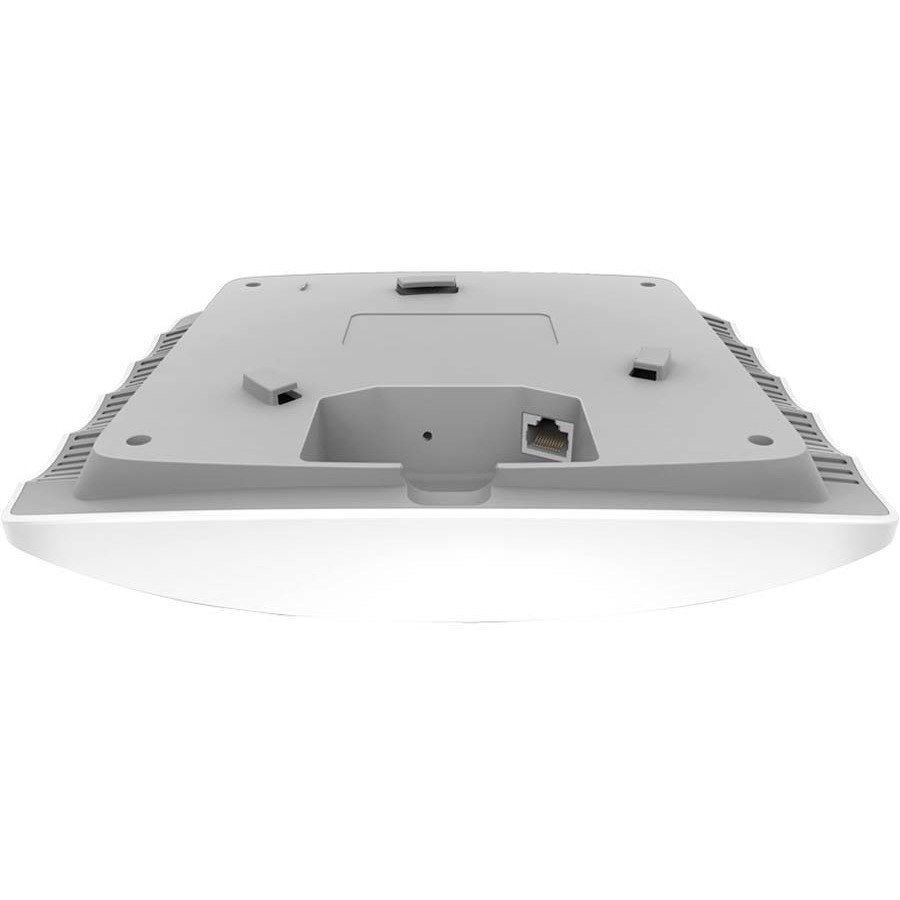

- Number of Network (RJ-45) Ports
- 1
- PoE PD Port
- Yes
- Power Description
- Power Consumption
- 9.70 W
- Physical Characteristics
- Form Factor
- Ceiling Mountable
- Wall Mountable
- Antenna Form Factor
- Internal
- Height
- 38.1 mm
- Width
- 205.7 mm
- Depth
- 180.3 mm
- Miscellaneous
- Package Contents
- AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223
- Mounting Kits
- Installation Guide
- Additional Information
Legal Disclaimer:
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
