- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com
- Brand Name
- TP-Link
- Product Type
- Docking Station
4K HDMI | 4K Ultra High-Definition Media Display
Connect to an external monitor through the 4K HDMI port for ultra high-definition media display.
Gigabit RJ45 | 1000 Mbps Ethernet Port
Enhance your connectivity with our USB-C Hub featuring a 1000Mbps Ethernet port, providing fast, stable, and reliable network connections for seamless data transfer, online meetings, and gaming.
SD & microSD | microSD and SD Card Simultaneous read/write
Easily transfer data in SD and microSD cards (up to 104 MB/s). Experience seamless data management with simultaneous read/write capabilities on both microSD and SD cards.
PD 100W | Powerful 100W Fast Charging
Plug the charging cable into UH9120C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.
USB 3.0 | 5 Gbps Rapid and Efficient Data Transfer
The USB 3.0 supports up to 10× fast data transfer speed as USB 2.0, and is also backward compatible with USB 2.0/1.1 devices.
Compact and Elegant Design
The self-storing design not only protects the port, but also but also improves portability. Aluminum alloy case and braided cable make UH9120C more durable. Bring you a better user experience.
Easy to Use with Plug & Play
Simply plug in and start using in seconds, thanks to driver-free install with Mac OS X El Capitan Version 10.11.6 and later, Windows 11/10/8.1, Linux OS, iPad OS, iOS, Android, Chrome OS, and Nintendo OS.
- Mac
- Windows
- Linux
- iPadOS
- iOS
- Android
- Chrome
- Nintendo
- Technical Information
- Connectivity Technology
- Wired
- Charging Capability
- Yes
- Device Supported
- Monitor
- Notebook
- Desktop PC
- Cable Length
- 18 cm
- Memory Card Reader
- Yes
- Memory Card Supported
- SD
- microSD
- Features
- Power Delivery Pass-through
- Compact
- Number of Displays Supported
- 1
- Screen Mode Supported
- 4K @ 60Hz
- 4K
- Supported Resolutions
- 3840 x 2160
- Maximum Data Transfer Rate
- 640 MB/s
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- USB Type C
- Total Number of USB Ports
- 4
- USB Type-A
- Yes
- Number of USB Type-A Ports
- 3
- USB Type-C
- Yes
- USB Type-C Detail
- 1 x USB Type-C 5Gbps
- Number of USB Type-C Ports
- 1
- Network (RJ-45)
- Yes
- Number of RJ-45 Ports
- 1
- HDMI
- Yes
- Number of HDMI Ports
- 1
- USB Power Delivery
- 100W
- Software
- Operating System Supported
- Mac OS X 10.9 Mavericks
- Windows 7
- Linux
- iPadOS
- iOS
- Android
- ChromeOS
- Nintendo OS
- Mac OS X 10.11.6 El Capitan
- Windows 11
- Windows 10
- Windows 8.1
- Physical Characteristics
- Form Factor
- Portable
- Height
- 14.3 mm
- Width
- 140.2 mm
- Depth
- 43 mm
- Miscellaneous
- Package Contents

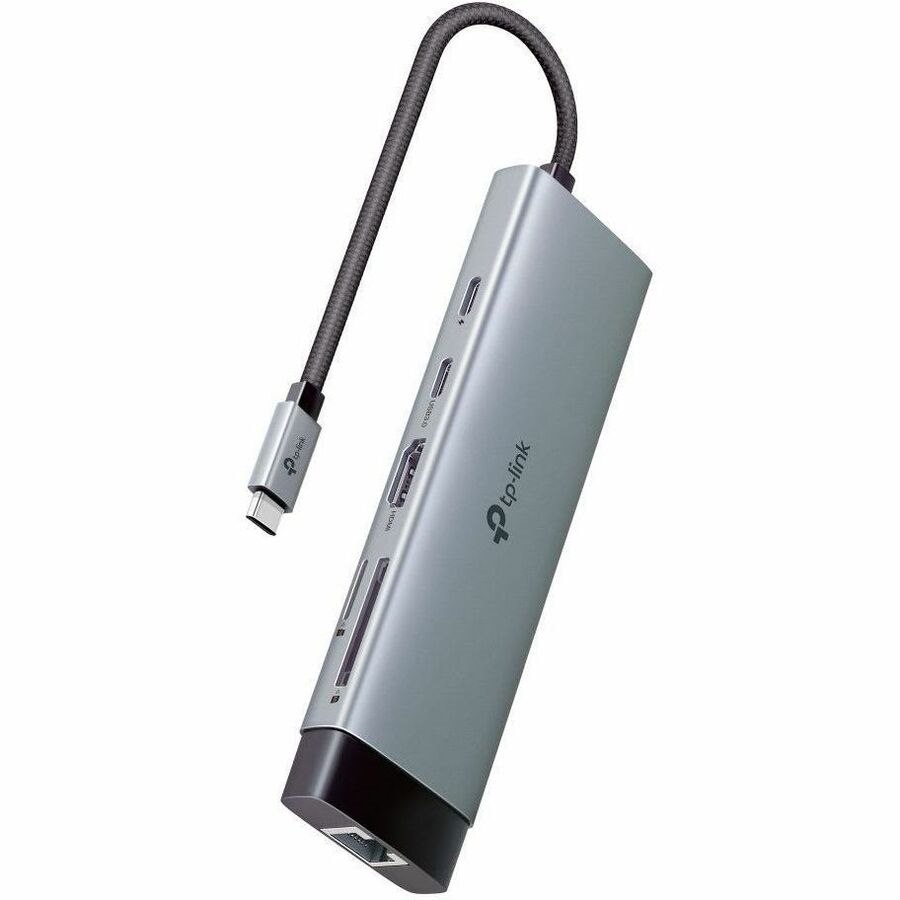

- UH9120C USB Type-C 9 in 1 Hub
- Quick Installation Guide
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
