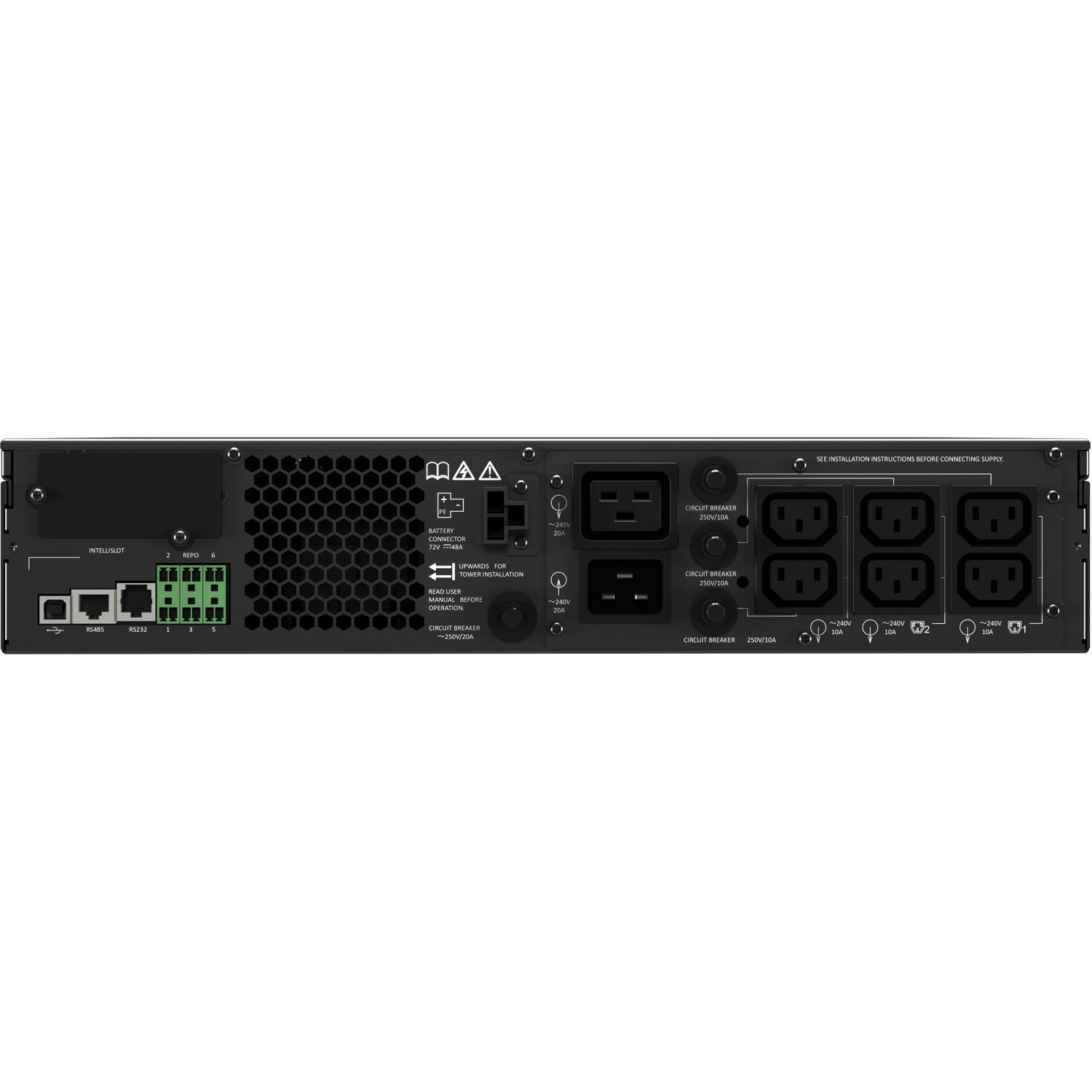

The Vertiv Liebert GXT5 UPS, with a capacity of 3000VA/3000W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a two-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertivco.com
- Brand Name
- Vertiv Liebert
- Product Series
- GXT5
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Plug/Connector Type
- IEC 60320 C20
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 6 x IEC 60320 C13
- 1 x IEC 60320 C19
- Overload Protection
- Yes
- Cord Length
- 3 m
- Phase
- Single Phase
- Application/Usage
- Critical System
- Power Description
- Load Capacity (VA)
- 3 kVA
- Load Capacity (Watt)
- 3 kW
- Input Voltage
- 230 V AC
- Input Voltage Range
- 115 V AC - 288 V AC
- Output Voltage
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- 200 V AC
- Input Frequency
- 70 Hz
- Waveform Type
- Pure Sine Wave
- Circuit Breaker
- Yes
- Management
- Network Management
- SNMP/HTTP Remote Monitoring
- Alarm
- Yes
- Controls/Indicators
- Status Indicators
- Colored Graphic LCD Display
- Interfaces/Ports
- Serial Port
- Yes
- VGA
- No
- Modem (RJ-11)
- No
- Network (RJ-45)
- Yes
- USB
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Number of Batteries
- 6
- Battery Characteristics
- Valve-regulated, Non-spillable
- Battery Chemistry
- Lead Acid
- Battery Size
- 12V
- Battery Capacity
- 9000 mAh
- Backup/Run Time (Full Load)
- 3.30 Minute
- Backup/Run Time (Half Load)
- 10.80 Minute
- Battery Life
- 5 Year
- Typical Battery Recharge Time
- 3 Hour
- Hot Pluggable
- Yes
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -20°C - 60°C
- Maximum Operating Elevation
- 3 km
- Maximum Storage Elevation
- 15 km
- Storage Relative Humidity
- 0% - 95%
- Sound Emission
- 48 dB
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 85 mm
- Width
- 540 mm
- Depth
- 430 mm
- Rack Height
- 2U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 28.20 kg
- Miscellaneous
- Package Contents
- GXT5 3000VA Rack/Tower UPS
- 4 Post Fixed Rail Kit and Tower Stand
- USB Cable
- Quick Start Guide
- Safety Instruction Manual
- Software Included
- Power Insight 2.2
- Assembly Required
- No
- Energy Star
- Yes
- Country of Origin
- China
- TAA Compliant
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS) 2
