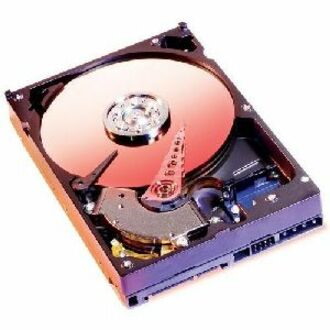

Carrying on the heritage of WD Caviar SE hard drive as industry-leading performers, Western Digital offers WD Caviar SE Serial ATA hard drive which feature capacity of 80 GB and an 8 MB buffer, to fill acute demand in market segments such as high-end PC, workstation, and entry-level servers. Designers of enterprise storage systems and servers are increasingly using desktop-class, large-capacity ATA hard drive because of the advantages provided by the SATA interface. Benefits include a data transfer rate of 150 MB/s and improved cabling that enables greater system design flexibility.
- General Information
- Manufacturer
- Western Digital Corporation
- Manufacturer Website Address
- http://www.wdc.com
- Brand Name
- WD
- Product Line
- Caviar SE
- Product Series
- SE
- Packaged Quantity
- 1
- Package Type
- OEM
- Product Type
- Hard Drive
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Storage Capacity
- 80 GB
- Platform Supported
- PC
- Drive Performance
- Maximum External Data Transfer Rate
- 150 MB/s (1.2 Gbit/s)
- Maximum Internal Data Transfer Rate
- 748 MB/s (5.8 Gbit/s)
- Spindle Speed (rpm)
- 7200
- Buffer
- 8 MB
- Average Latency
- 4.20 ms
- Interfaces/Ports
- Drive Interface
- SATA
- Drive Interface Standard
- SATA/150
- SATA Pin
- 7-pin
- Power Description
- Input Voltage
- 12 V DC
- 5 V DC
- Physical Characteristics
- Form Factor
- 3.5"
- Drive Height
- 1/3H
- Hot Swappable
- Yes
- Height
- 25.9 mm
- Width
- 101.6 mm
- Depth
- 146.8 mm
- Weight (Approximate)
- 598.7 g
- Miscellaneous
- Additional Information
- 0.004 g2/Hz (10 to 300 Hz) Random Operating Vibration
- 5-20 Hz, 0.195 inches (dbl amp) Linear Non-operating Vibration
- Certifications & Standards
- S.M.A.R.T
