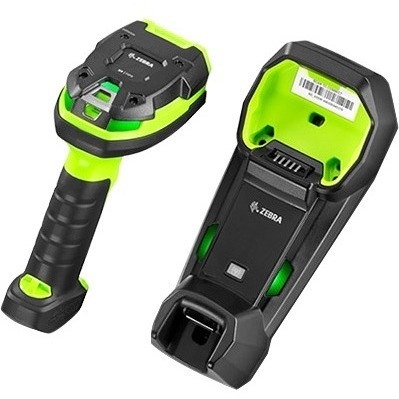

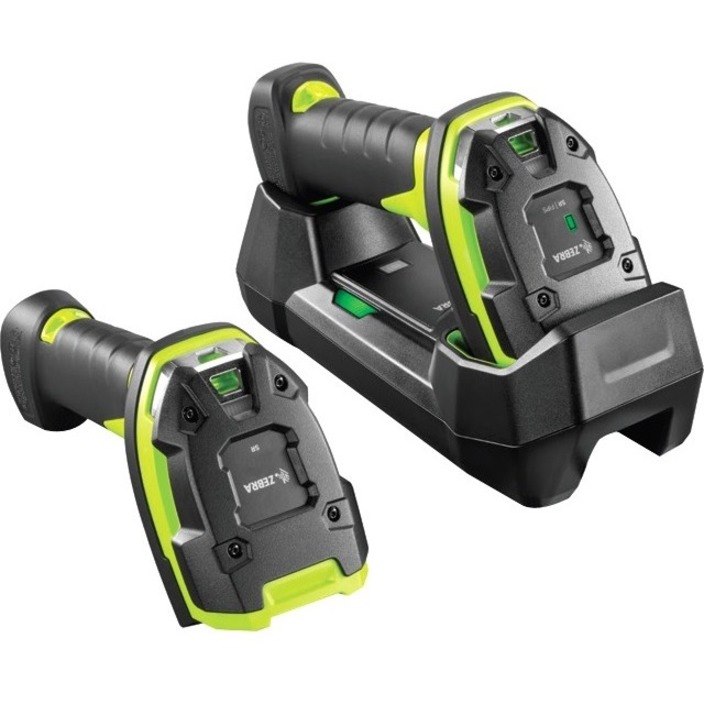

Zebra DS3608 Rugged Warehouse Handheld Barcode Scanner Kit - Wireless Connectivity - Industrial Green

  • Part: 1009743
  • Model: DS3608-SR3RF50AZVW
R20,929.00
FREE DELIVERY

Availability

Out of Stock

Unstoppable performance for standard range 1D/2D barcode capture: ?

Every day, workers in your warehouse and on the manufacturing plant floor scan thousands of barcodes to

ensure product quality and on-time order delivery. Their productivity depends on the quality of the scanner

you put in their hands. When workers need to capture 1D and 2D barcodes at standard ranges, with the corded

DS3608-SR and cordless DS3678-SR scanner, you can give them the best - unmatched rugged design,

unmatched scanning performance and unrivaled manageability. The advanced imager delivers lightning-fast

capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen, from near

contact to nearly 5 ft./1.5 m away. The ultra-rugged design is practically indestructible - ideal for punishing

environments. The DS3608-SR/DS3678-SR couldn't be easier and less time-consuming to deploy and manage.

And when it comes to cordless technology, the DS3678-SR is loaded with Zebra-only features that put it in a class

of its own, including a sealed rugged cradle, a smart battery and Zebra's Wi-Fi Friendly Mode that prevents

interference with your Wi-Fi network. The DS3608-SR/DS3678-SR - the unstoppable performance you need to

maximize workforce productivity and throughput in your operations.

  • General Information
    • Manufacturer
    • Zebra Technologies Corporation
    • Manufacturer Website Address
    • http://www.zebra.com/gb/en
    • Brand Name
    • Zebra
    • Product Series
    • 3600
    • Product Type
    • Barcode Scanner Kit
  • Warranty
    • Limited Warranty
    • 36 Month

  • Technical Information
    • Connectivity Technology
    • Wireless
    • Scanning Capability
    • 1D
    • 2D
    • Barcode Symbology Supported
    • 1D Code:

      • 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

      2D CODE:

      • PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes, DotCode
    • Light Source
    • LED
    • Image Sensor Type
    • Imager
    • Scan Mode
    • Trigger
    • Scanner Range
    • Standard Range
    • Features
    • Notification LED
    • Beep
    • Vibration
    • Display Screen
    • Yes
    • Field of View (Horizontal)
    • 42°
    • Field of View (Vertical)
    • 28°
    • Reading Angle (Skew)
    • 60°
    • Reading Angle (Pitch)
    • 60°
    • Reading Angle (Roll)
    • 360°
    • Drop Specification
    • Withstands multiple 8.0 ft./2.4 m drops to concrete

    • Minimum Print Contrast
    • 15%
    • Minimum Element Resolution (DataMatrix)
    • 0.19 mm
    • Maximum Element Resolution (DataMatrix)
    • 0.25 mm
    • Image Sensor Resolution
    • 1280 x 800
    • Illumination Type
    • LED
    • Air Electrostatic Discharge (+/-)
    • 25kV
    • Contact Electrostatic Discharge (+/-)
    • 10kV
  • Network & Communication
    • Bluetooth
    • Yes
  • Interfaces/Ports
    • Host Interface
    • Keyboard Wedge
    • USB
    • Serial
    • Ethernet
    • PROFINET
  • Power Description
    • Power Supply Included
    • Yes
    • Input Current
    • 360 mA
  • Battery Information
    • Battery Chemistry
    • Lithium Ion (Li-Ion)
    • Battery Capacity
    • 3100 mAh
  • Environmental Conditions
    • Operating Temperature
    • -30°C to 50°C
    • Storage Temperature
    • -40°C to 70°C
    • Humidity (Non-condensing)
    • 5% to 95%
  • Physical Characteristics
    • Form Factor
    • Handheld
    • Rugged
    • Yes
    • Color Family
    • Green
    • Product Color
    • Industrial Green
    • Durability
    • Water Proof
    • Spray Proof
    • Height
    • 185.4 mm
    • Width
    • 76.2 mm
    • Depth
    • 132.1 mm
    • Weight (Approximate)
    • 305 g
  • Miscellaneous
    • Package Contents
      • 1 x DS3608-SR00003VZWW SCANNER CBA-RF5-S07ZAR
      • 1 x SERIAL CABLE EA3600-R1CP-00
      • 1 x ETHERNET ADAPTER (ETHERNET/IP MODBUS TCP & TCP/IP PROTOCOLS) REQUIRES CERTIFIC [DS3608-SR3RF5 [DS3608-SR3RF50AZVW]
    • Ingress Protection (IP) Rating
    • IP65
    • IP67
    • Application/Usage
    • Warehouse
    • Manufacturing
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
