- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com/gb/en
- Brand Name
- Zebra
- Product Type
- Antenna
IP67 rated for use in outdoor environments and dock door applications

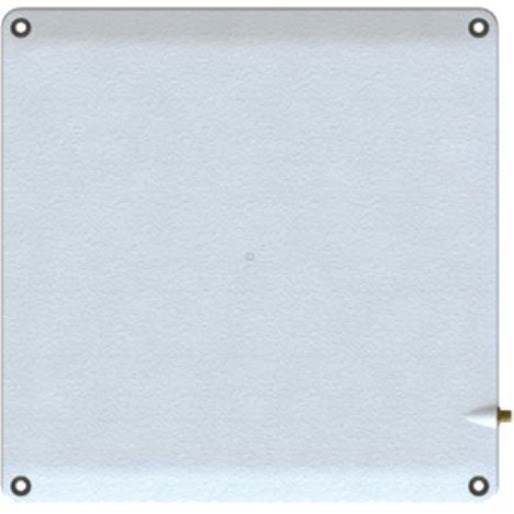

The AN510 ultra-rugged, low profile antenna, with an IP67 rating, is suitable for use in a wide range of indoor and outdoor environments including outdoor shopping areas, receiving dock doors, ceilings, out on the tarmac, and on conveyor belts to name a few. The outer housing is designed to be sleek and discreet enough to be at home in any business but rugged enough for outdoor industrial environments. The versatile flush and VESA-studded mounting options make installation and mounting simple.
- Technical Information
- Operating Frequency Range
- 865 MHz to 868 MHz
- 902 MHz to 928 MHz
- Antenna Gain
- 9 dB
- Interfaces/Ports
- Connector Type
- SMA
- Physical Characteristics
- Height
- 250 mm
- Width
- 250 mm
- Depth
- 14 mm
- Form Factor
- Flush Mount
- Weight (Approximate)
- 750 g
- Miscellaneous
- Application/Usage
- Indoor
- Outdoor
- RFID
- Vehicle
- Access Control System
- TAA Compliant
- Yes
